Dolgix DDR4 ECC memory

Server & Workstation RAM

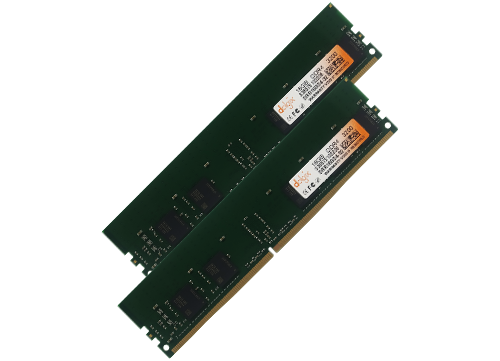

Dolgix DDR4 Server RAM and Workstation Memory
8–32GBmodule capacities
2666 / 3200MHz configurations
DDR4 ECCx72 memory organization
288-pinLong-DIMM form factor

About Dolgix server memory

ECC memory for servers and professional workstations.

Dolgix DDR4 server and workstation memory modules are designed for compatible servers and professional workstation systems that require reliable ECC memory. Available capacities include 8GB, 16GB and 32GB with 2666MHz and 3200MHz configurations.

DDR4 ECC server RAM is designed to support error detection and correction capabilities required by compatible server and workstation platforms. These memory modules use a 288-pin Long-DIMM form factor and are available with x72 memory organization.

Dolgix server memory can be considered for server upgrades, workstation memory expansion and professional computing systems where compatible DDR4 ECC memory is required.

Server RAM Features

Power, signalling and build details of every module.

Power supply

  • Power Supply: VDD=1.2V (1.14V to 1.26V)
  • VDDQ = 1.2V (1.14V to 1.26V)
  • VPP = 2.5V (2.375V to 2.75V)
  • VDDSPD = 2.25V to 2.75V

Signals and data

  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Data transfer rates up to PC4-25600 as listed in the specifications
  • Bi-Directional Differential Data Strobe
  • Fly-by topology
  • Terminated control, command, and address bus

Reliability and build

  • Supports ECC error detection and correction
  • Gold edge contacts
  • Halogen-free
  • Operating temperature - Commercial (0°C ≤ TOPER ≤ 95°C)

Server & Workstation RAM Specifications

All modules are DDR4, ECC, 288-pin Long DIMM.

SDRAM Capacity DIMM MHz Buffer ECC PIN PC-Speed CL Module Density DQ
DDR4 8GB Long 2666 Un-Buffered ECC 288 PC4-21333 19 1024Mx72bit x72
DDR4 8GB Long 3200 Un-Buffered ECC 288 PC4-25600 22 1024Mx72bit x72
DDR4 16GB Long 2666 Un-Buffered ECC 288 PC4-21333 19 2048Mx72bit x72
DDR4 16GB Long 3200 Un-Buffered ECC 288 PC4-25600 22 2048Mx72bit x72
DDR4 32GB Long 2666 Un-Buffered ECC 288 PC4-21333 19 4096Mx72bit x72
DDR4 32GB Long 3200 Un-Buffered ECC 288 PC4-25600 22 4096Mx72bit x72
