Dolgix & Dolgix Gold

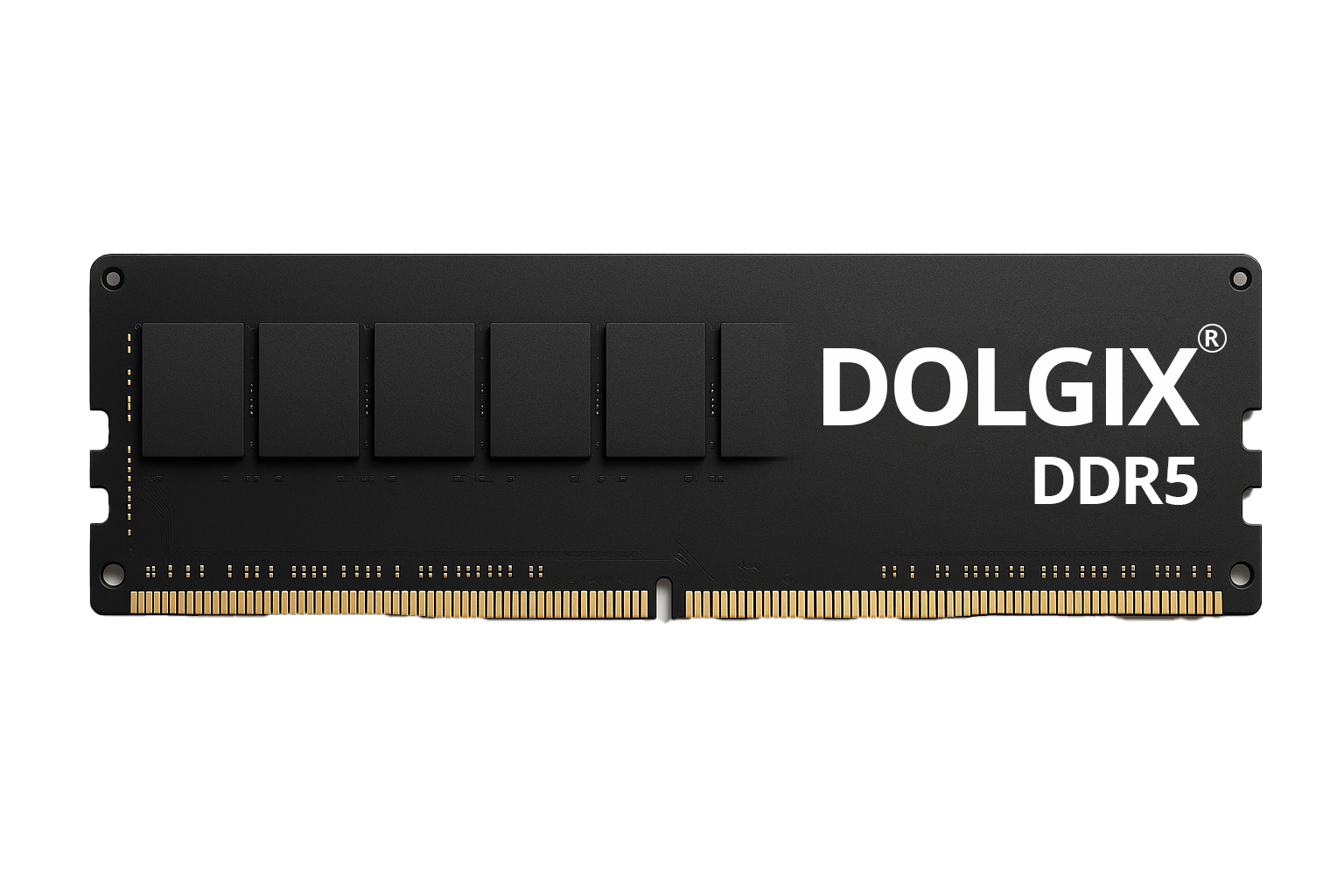

DDR5 RAM Modules

Dolgix Un-buffered client DDR5 SDRAM DIMMs are high-speed, low-power memory modules utilizing advanced DDR5 SDRAM devices. Designed for desktops, these modules deliver enhanced performance and energy efficiency.

Best DDR5 RAM from Dolgix for desktop computers

4800–5600MHz speeds

8–32GBmodule capacities

288-pinun-buffered UDIMM

1.1Vlow-power operation

DDR5 RAM key features

What every Dolgix DDR5 module is built on.

DRAM VDD/VDDQ: 1.1V (–33mV / +66mV)
DRAM VPP: 2.5V (–125mV / +250mV)
Internal banks: 32 banks, 8 groups of 4 banks each
Rank: Single / Dual rank
Form factor: 288-pin DDR5 un-buffered UDIMM
Transfer rates: PC5-38400, PC5-41600 and PC5-44800
Contacts: Gold edge contacts, halogen-free
Operating temperature: Commercial (0°C ≤ T_OPER ≤ 95°C)

DDR5 RAM module specifications

Pick a capacity to filter the list.

DDR5 RAM type	Capacity	DIMM	MHz	Buffer	ECC	PIN	PC-Speed	CL	Module density	DQ
DDR5 RAM	8GB	Long DIMM	4800 MHz	Un-Buffered	Non-ECC	288-Pin	PC5-38400	40	1024Mx64bit	x64
DDR5 RAM	8GB	Long DIMM	5200 MHz	Un-Buffered	Non-ECC	288-Pin	PC5-41600	42	1024Mx64bit	x64
DDR5 RAM	8GB	Long DIMM	5600 MHz	Un-Buffered	Non-ECC	288-Pin	PC5-44800	46	1024Mx64bit	x64
DDR5 RAM	16GB	Long DIMM	4800 MHz	Un-Buffered	Non-ECC	288-Pin	PC5-38400	40	2048Mx64bit	x64
DDR5 RAM	16GB	Long DIMM	5200 MHz	Un-Buffered	Non-ECC	288-Pin	PC5-41600	42	2048Mx64bit	x64
DDR5 RAM	16GB	Long DIMM	5600 MHz	Un-Buffered	Non-ECC	288-Pin	PC5-44800	46	2048Mx64bit	x64
DDR5 RAM	32GB	Long DIMM	4800 MHz	Un-Buffered	Non-ECC	288-Pin	PC5-38400	40	4096Mx64bit	x64
DDR5 RAM	32GB	Long DIMM	5200 MHz	Un-Buffered	Non-ECC	288-Pin	PC5-41600	42	4096Mx64bit	x64
DDR5 RAM	32GB	Long DIMM	5600 MHz	Un-Buffered	Non-ECC	288-Pin	PC5-44800	46	4096Mx64bit	x64

Looking for 64GB or other higher-capacity DDR5 configurations? Contact the Dolgix team to confirm availability.

Is DDR5 right for your system?

DDR5 only works in systems built for it. Check your model, or see our other RAM generations.
